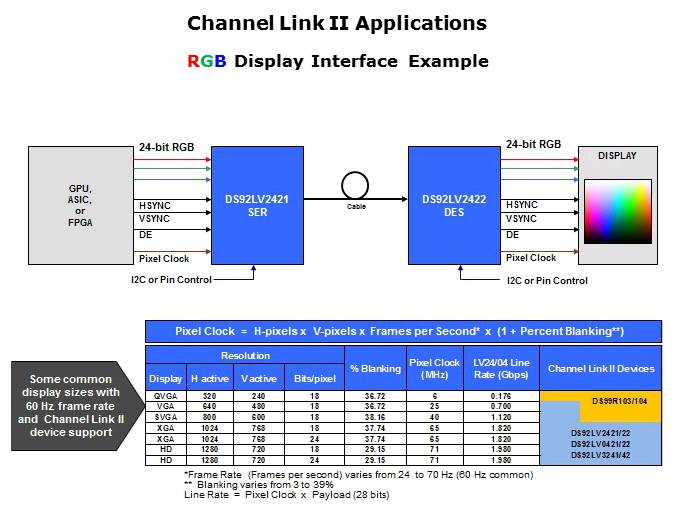

This slide shows how to calculate the pixel clock rate when the display resolution is given. The pixel clock rate is a product of the number of horizontal pixels, number of vertical pixels and the blanking overhead. Additionally, the pixel clock rates for common display applications are shown in a chart here.
PTM Published on: 2011-05-05
