Translate an Idea Into Arduino Code

2022-04-26 | By bekathwia

License: Attribution Non-commercial Arduino

Follow along as I share my workflow for turning an idea into an Arduino sketch for a functional prototype. This process helps add structure to an amorphous task, especially for beginners.

For this circuit, I used the following supplies:

• Arduino Uno
• USB cable
• Membrane keypad
• Aphanumeric display
• 3x 10mm LEDs (green, yellow, red)
• 3x 220 ohm resistors
• Solderless breadboard
• Prototyping wires
• Proto shield
• Computer running Arduino software
• Multimeter
• Eye protection
• Soldering iron and solder
• Wire strippers
• Flush cutters
• Helping third hand tool

The process (watch the video above to hear more about each step):

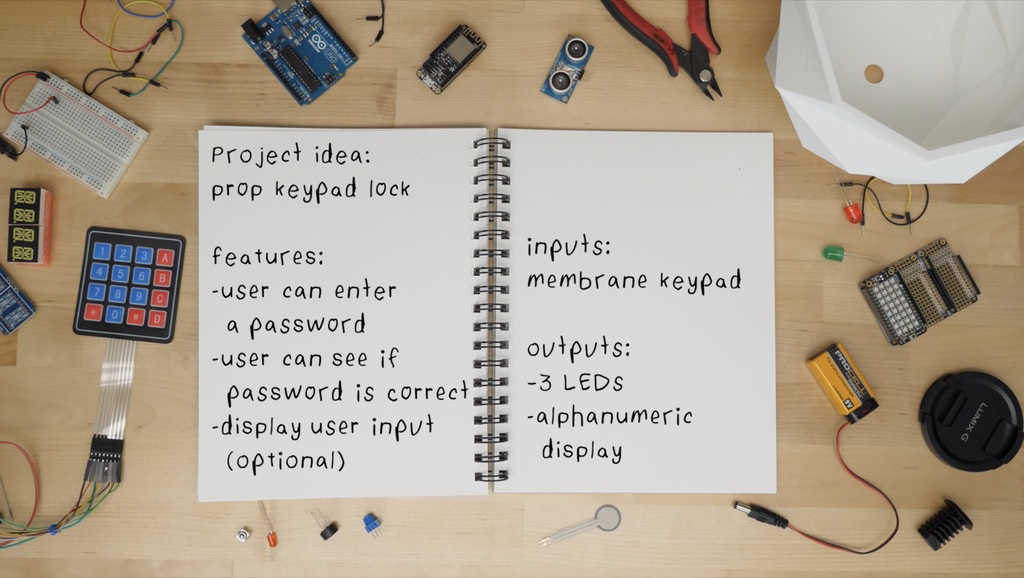

1. Define your purpose
2. Classify inputs and outputs
3. Write pseudocode
4. Test hardware with sample code
5. Create your new program
6. Make incremental improvements

To read more about this circuit and download the code, visit my website. To build your own passkey evaluator circuit, check out the following Digi-Key supplies:
