AS1170 2-Channel LED VCSEL Driver

ams OSRAM's 2-channel driver has an integrated boost converter and high output currents

Image of ams OSRAM's AS1170 2-Channel LED/VCSEL Driver ams OSRAM's AS1170 is a 2-channel LED/VCSEL laser driver for high output currents of up to 2,000 mA. It is a very versatile part due to its integrated boost converter and the possibility to control both channels independently as well as in a combined mode. The AS1170 features integrated circuit protection functions and an automatic battery lifetime extension mode. With its WLCSP it is still small and cost-effective, making it the ideal choice for battery-driven applications or applications with high current needs and space constraints.

Resources

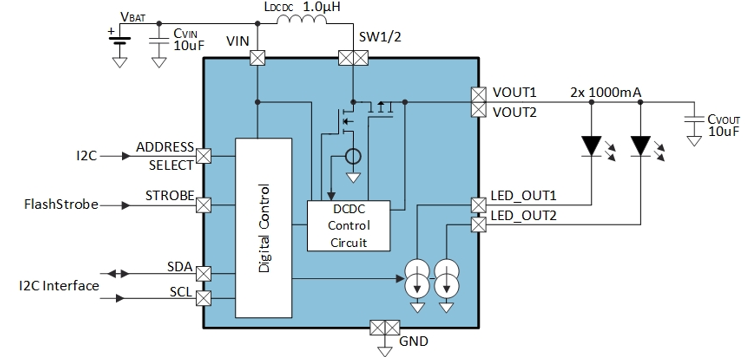

Image of ams OSRAM's AS1170 Graph

Features
  • High-efficiency 4 MHz fixed-frequency DCDC boost converter
  • Independent channel control
  • High output current
  • Channels can be combined for a single output
  • Integrated protection functions
  • Automatic current adjustment for low battery voltage
  • 13 balls WLCSP: 2.25 mm x 1.5 mm x 0.6 mm
Applications
  • Flash/torch/video light for smartphones
  • 3D sensing:  active stereo vision/structured light
  • Robotics and factory automation
  • Home and building automation
  • Handheld scanners

AS1170 2-Channel LED VCSEL Driver

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
IC LED DVR REG 1.8A 2A 13WLCSPAS1170-ZWLMIC LED DVR REG 1.8A 2A 13WLCSP812 - Immediate$1.05View Details
Published: 2023-12-05
